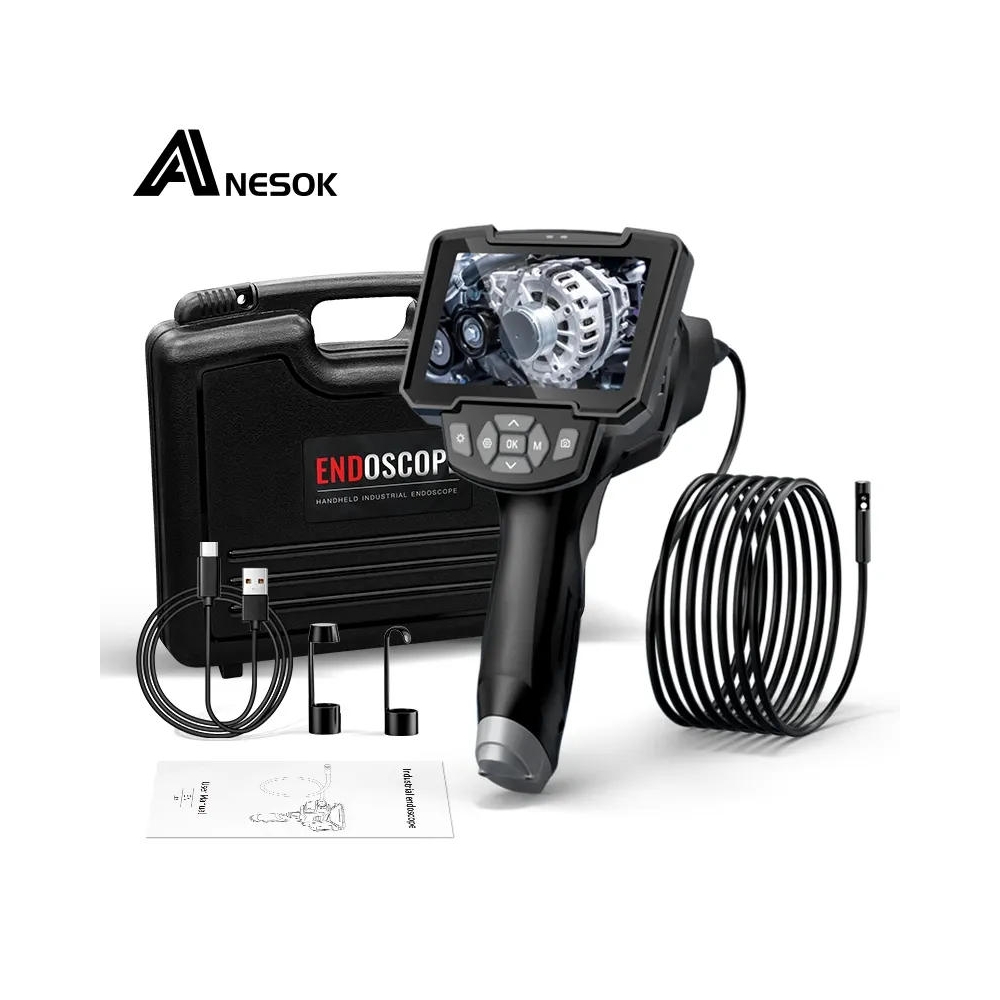

This Anesok® 4.3 inch IPS Industrial Endoscope Camera have dual cameras and HD inspection camera is built into the side of the main camera for a wider field of view. Easily switch between two 70-degree cameras for a total of a 140-degrees view to look sideways and forwards. Focal length at 2-10cm for the sharpest image. Our IPS endoscope with semi rigid cable with 5.5mm camera easily passes through hard-to-reach areas.The cable can hold its shape well. An IP67 waterproof design allows the camera to operate 3.28ft (1 metre) underwater for half one hour.
Accessories list
(Notice:3.9mm don’t have magnet, hook, mirror and protective cap)
(Notice:Dual lens and triple lens don’t have side mirror)
Endoscope*1
Manual*1
Accessorycylinder*1
Magnet*1
Hook*1
Mirror*1
Protective cap*1
USB and Micro-USB charging cable*1
Anesok® 4.3 inch IPS Industrial Endoscope Camera Specification
| Item name | 4.3 inch IPS Industrial Endoscope Camera |
| Model name | 112-B |
| Sensor | CMOS, 1.0MP |
| Camera lighting | 6 LEDs,6+1 LEDs |
| Lens type | Single lens/Dual Lens |
| Probe diameter | 3.9mm/5.5mm/8mm |
| Cable type | Snake Tube/Semi Rigid Cable |
| Cable length | 1/m/3m/5m/10m |
| Screen size | 4.3inch IPS Screen |
| Screen resolution | 480*272P |
| Image resolution and format | 1920*1080(JPEG) |
| Video resolution and format | 640*480P(AVI) |
| Frame rate | 20 fps |
| Working voltage | 4.2V |
| White balance | Automatic |
| Exposure | Automatic |
| Depth of field | Front camera:2-10cm |
| Side camera:2-5cm | |
| Field of vision | 70° |
| Bending radius | min. 30 mm |
| Camera waterproof | IP67 |
| Product material | ABS+PC |
| Operating temperature | -10 to +50 °C |
| Operating humidity | <85 % RH |
| Storage temperature | -10 to +50 °C |
| Storage humidity | <85 % RH |
| Data storage | TF card (size: max. 64 GB,speed class: min. 10) |
| Battery capacity | 18650 2000mAh Li-battery/3hours |
| Connector type | Micro USB |
| Color | Black+orange |
| Certification | EMC/RoHS/MSDS/UN38.3 |
| Zoom | 1.0-1.5-2.0X |
| Warranty | 1 Year |
| Package box size | 31.5*21*11cm |
| Pcs / Master CTN/CTN size | 10pcs/CTN; 59.5*59*33cm |
Anesok® 4.3 inch IPS Industrial Endoscope Camera Feature and Application
Feature:
(1)Dual lens
(2)4.3inch IPS scren
(3)IP67 waterproof
(4)6 Adjustable LEDs on the camera head
(5)Support 64GB memory card
(6)Rechargeable Battery
(7)Portable case
Anesok® 4.3 inch IPS Industrial Endoscope Camera Details
