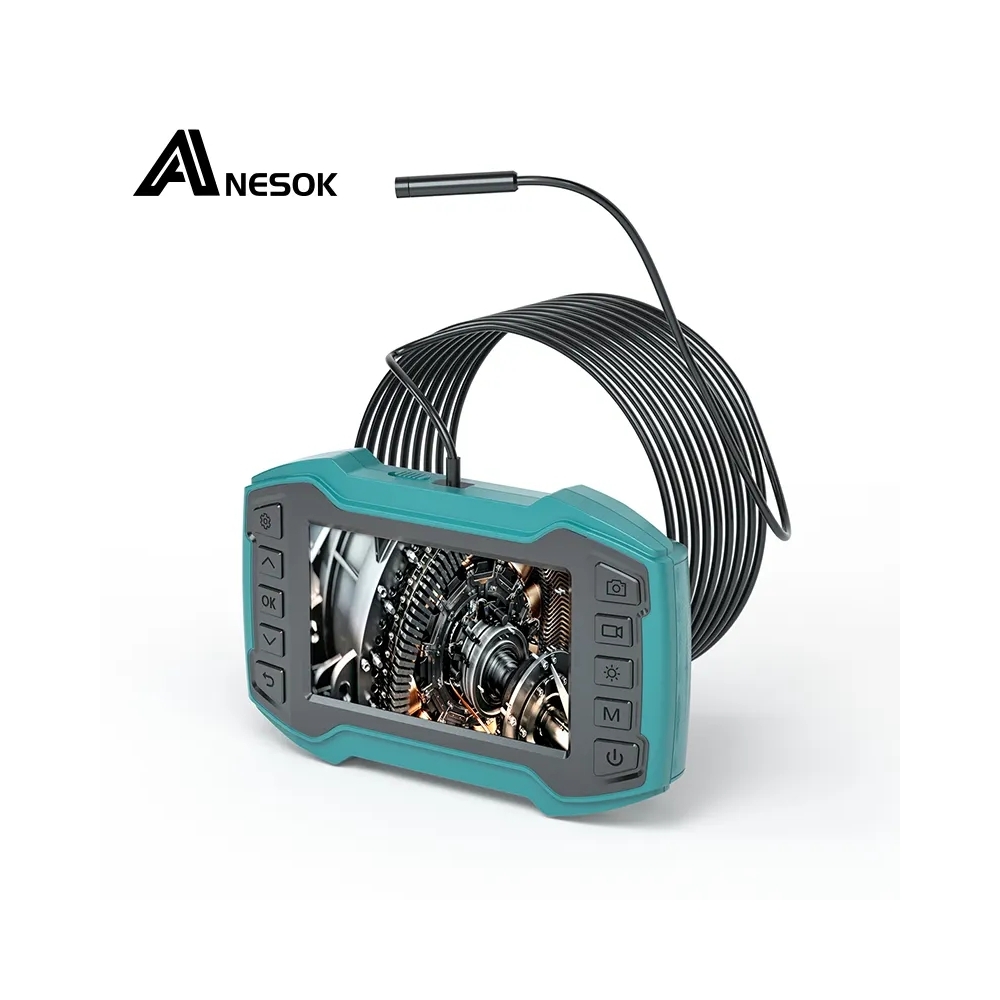

This Anesok® 4.5 inch IPS Pipe Endoscope Camera has 4.5" IPS inspection camera that allows you more convenient to perform live analysis on your application area and to view HD photos and videos instantly. Absolutely no need app, smartphone,bluetooth or WIFI.Easy to operate, just use the Pipe endoscope camera immediately when the endoscope is powered on.
Accessories list
(Notice:3.9mm don’t have magnet, hook, mirror and protective cap)
(Notice:Dual lens and triple lens don’t have side mirror)
Endoscope*1
Manual*1
Accessorycylinder*1
Magnet*1
Hook*1
Mirror*1
Protective cap*1
USB and Type-Ccharging cable*1
Anesok® 4.5 inch IPS Pipe Endoscope Camera Specification
| Item name | 4.5 inch IPS Pipe Endoscope Camera |
| Model name | 452 |
| Sensor | CMOS, 1.0MP |
| Camera lighting | 8 LEDs,6+1 LEDs |
| Lens type | Single lens/Dual Lens |
| Probe diameter | 5.5mm/8mm |
| Cable type | Semi Rigid Cable |
| Cable length | 1/m/5m/10m |
| Screen size | 4.5inch IPS Screen |
| Screen resolution | 480*854P |
| Image resolution and format | 1920*1080(JPEG) |
| Video resolution and format | 1280*720P(AVI) |
| Frame rate | 20 fps |
| Working voltage | 4.2V |
| White balance | Automatic |
| Exposure | Automatic |
| Depth of field | Front camera:4-10cm |
| Side camera:4-10cm | |
| Field of vision | 70° |
| Bending radius | min. 30 mm |
| Camera waterproof | IP67 |
| Product material | ABS+PC |
| Operating temperature | -10 to +50 °C |
| Operating humidity | <85 % RH |
| Storage temperature | -10 to +50 °C |
| Storage humidity | <85 % RH |
| Data storage | TF card (size: max. 32 GB,speed class: min. 10) |
| Battery capacity | 18650 2000mAh Li-battery/3hours |
| Connector type | Type-C |
| Color | Black/Gray |
| Certification | EMC/RoHS/MSDS/UN38.3 |
| Warranty | 1 Year |
| Package box size | 20*12.2*8cm |
| Pcs / Master CTN/CTN size | 30pcs/CTN; 42*40.7*39cm |
Anesok® 4.5 inch IPS Pipe Endoscope Camera Feature and Application
Feature:
(1)Dual lens
(2)4.5inch IPS scren
(3)IP67 waterproof
(4)6/8 Adjustable LEDs on the camera head
(5)Support 32GB memory card
(6)Rechargeable Battery
(7)HD resolution
Anesok® 4.5 inch IPS Pipe Endoscope Camera Details
