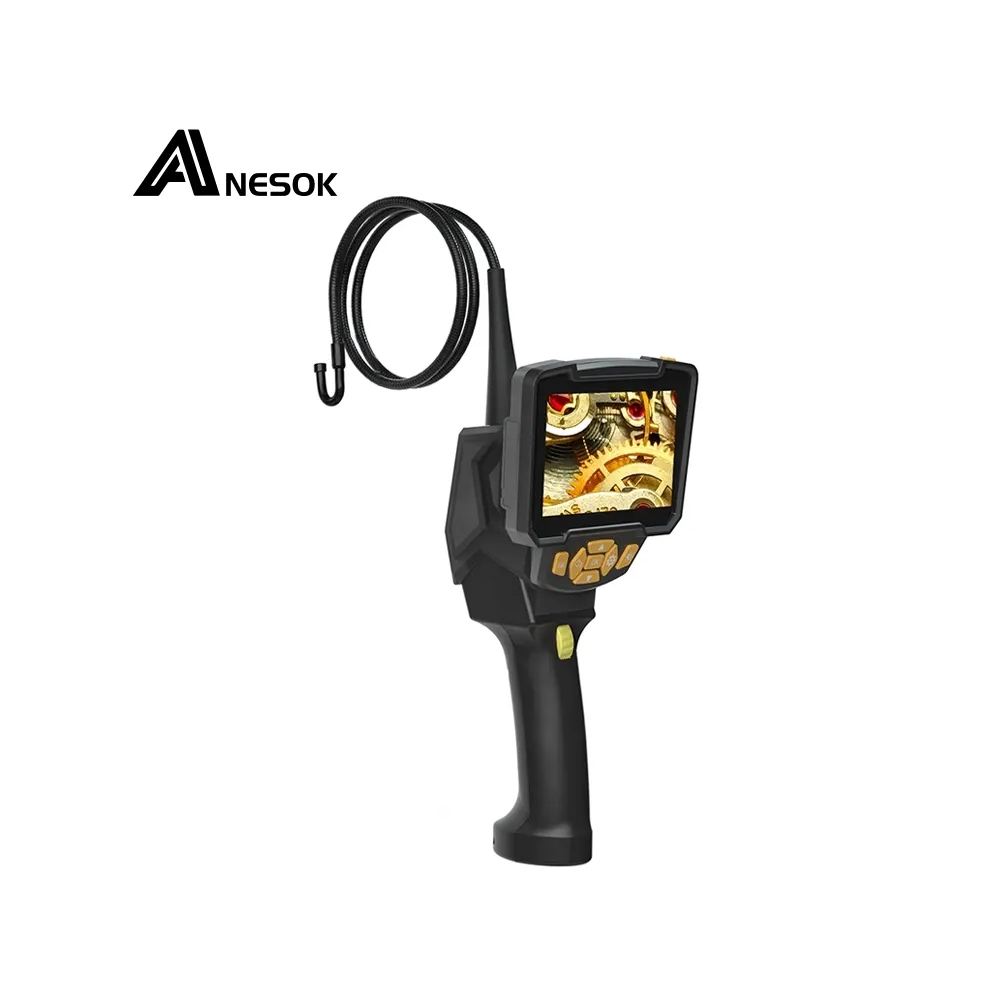

This Anesok® 4.3 inch LCD Steering Endoscope Camera has two-way 360°steering lens,
two sides easy to free flexible bending 360°, 0° to 360°continuously adjustable and can be locked at any angle, which allow to put small probes into a small space, then transmit clear and all-round video and pictures shown on the monitor screen through the cable. Armed with semi rigid cable can bend at will and it is good tool for checking the pipe, it helps to clean, rust, corrosion, dust and cracks.
Accessories list
Endoscope host*1
4.3 inch display*1
Manual*1
Lens cleaning cloth*1
Rubber case*2
USB and micro USB charging cable*1
Anesok® 4.3 inch LCD Steering Endoscope Camera Specification
| Item name | 4.3 inch LCD Steering Endoscope Camera |
| Model name | 805-P |
| Sensor | CMOS, 1.0MP |
| Camera lighting | 6 LEDs |
| Lens type | Single lens |
| Probe diameter | 8.5mm |
| Cable type | Semi rigid cable/Flexible tube |
| Cable length | 0.8m/2m |
| Screen size | 4.3 Inch LCD Screen |
| Screen resolution | 480*272P |
| Image resolution and format | 1920*1080P(JPEG) |
| Video resolution and format | 1280*720P(AVI) |
| Frame rate | 20 fps |
| Working voltage | 4.2V |
| White balance | Automatic |
| Exposure | Automatic |
| Depth of field | 2-6cm |
| Minimum bending length | 45MM |
| Field of vision | 70° |
| Camera waterproof | IP67 |
| Product material | ABS+PC |
| Operating temperature | -10 to +65 °C |
| Operating humidity | <85 % RH |
| Storage temperature | -10 to +65 °C |
| Storage humidity | <85 % RH |
| Data storage | TF card (size: max. 64 GB,speed class: min. 10) |
| Battery capacity | 18650 2600mAh Li-battery/4hours |
| Connector type | Micro USB2.0 |
| Color | Black |
| Certification | EMC/RoHS/MSDS/UN38.3 |
| Warranty | 1 Year |
| Package box size | 33.5*28.5*9cm |
| Pcs / Master CTN/CTN size | 12pcs/CTN; 55*43*56cm |
Anesok® 4.3 inch LCD Steering Endoscope Camera Feature and Application
Feature:
(1)4.3inch LCD screen
(2)IP67 waterproof
(3)6 Adjustable LEDs on the camera head
(4)Support 64GB memory card
(5)Two-way 360°Steering Lens
(6)2600mah and 4hours use life
Anesok®4.3 inch LCD Steering Endoscope Camera Details
