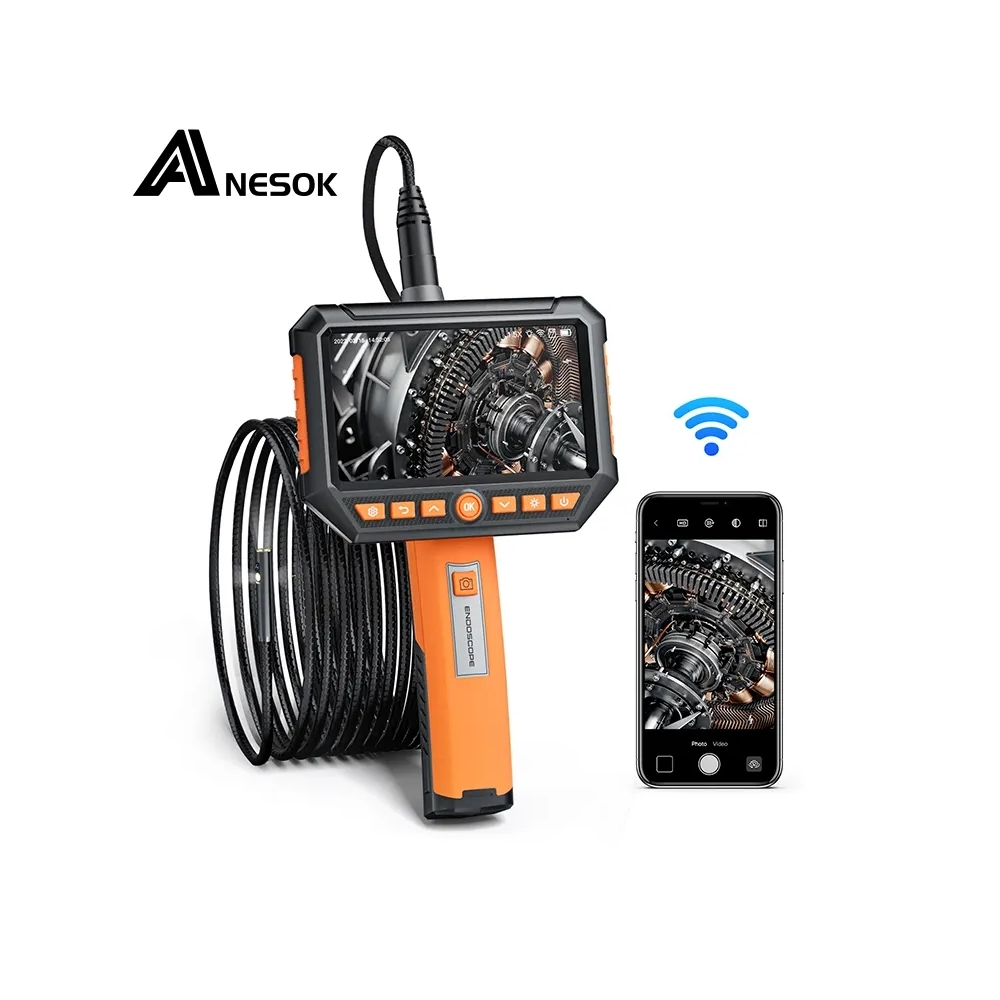

This Anesok® industrial endoscope is the latest invention of high-quality endoscope IP67 and comes with 1 year warranty. The Anesok® 5 inch OLED Triple Lens Video Endoscope is a high-performance dual-system industrial endoscope developed by Yipincheng Group with a high-definition color display. The screen and the mobile phone are synchronously displayed online. It is widely used in the maintenance of automobile engines, aero engine, underground mine tunnels, and narrow spaces that cannot be touched and reached by human eyes. Comes with storage, support photo and video functions, and supports TF card expansion (up to 128G).
This product is equipped with a high-definition camera and a flashlight with a small diameter of LED auxiliary lighting. The camera adopts a high-sensitivity chip, which can be used normally even in a dark working environment.
Accessories list
(Notice:3.9mm don’t have magnet, hook, mirror and protective cap)
(Notice: 5.5mm only have magnet,small hook,protective cap)
(Notice:Dual lens and triple lens don’t have side mirror)
Endoscope*1
Manual*1
Accessorycylinder or box*1
Magnet*1
Large Hook*1
Small Hook*1
Sharp Hook*1
Mirror*1
Protective cap*1
USB andTYPE-C charging cable*1
Anesok® 5 inch OLED Triple Lens Video Endoscope Specification
| Item name | 5 inch OLED Triple Lens Video Endoscope |
| Model name | G52 |
| Sensor | CMOS, 2.0 MP |
| Camera lighting | 6 LEDs,6+1 LEDs, 6+1+1 LEDs |
| Lens type | Single lens/Dual Lens/Triple lens |
| Probe diameter | 3.9/5.5/8mm/12mm |
| Cable type | Snake Tube/Semi Rigid Cable |
| Cable length | 1m/3m/5m/10m/15m/20m/ OEM cable length |
| Screen size | 5 Inch OLED Screen |
| Screen resolution | 1280*720P |
| Image resolution and format | 1920*1080(JPEG) |
| Video resolution and format | 1920*1080(MP4) |
| Working frequency | 2.4Ghz |
| Frame rate | 20 fps |
| Working voltage | 4.2V |
| White balance | Automatic |
| Exposure | Automatic |
| Depth of field | Front camera:2-10cm |
| Side camera 1:2-5cm | |
| Side camera 2: 2-5cm | |
| Field of vision | 70-78° |
| Bending radius | min. 30 mm |
| Camera waterproof | IP67 |
| Product material | ABS+PC |
| Operating temperature | -10 to +50 °C |
| Operating humidity | <85 % RH |
| Storage temperature | -10 to +50 °C |
| Storage humidity | <85 % RH |
| Data storage | TF card (size: max. 128 GB,speed class: min. 10) |
| Battery capacity | 18650 4400mAh Li-battery/6hours |
| Connector type | Type-C |
| Color | Orange+black |
| Certification | EMC/CE-RED/RoHS/FCC/MSDS/UN38.3 |
| Zoom | 1.0-1.5-2.0X |
| Support system | Ios8.0+/android6.0+ |
| APP | Anesok |
| Warranty | 1 Year |
| Package box size | 31.5*29*11cm |
| Pcs / Master CTN/CTN size | 10pcs/CTN; 59.5*59*33cm |
Anesok® 5 inch OLED Triple Lens Video Endoscope Feature and Application
Feature:
(1)Tripe lens/Dual lens/Single lens
(2)3.9mm/5.5mm/8mm/11.2mm camera size
(3)5inch OLED scren
(4)IP67 waterproof
(5)>=6 Adjustable LEDs on the camera head
(6)Flash light on the top of monitor
(7)Dual-system support wifi connection
(8)Support 128GB memory card
(9)Type-C fast data transfer
(10)Picture zoom and still and sharing
(11)Video playback fast forward and backward
(12)4400mah and 6hours use life
Anesok® 5 inch OLED Triple Lens Video Endoscope Details
