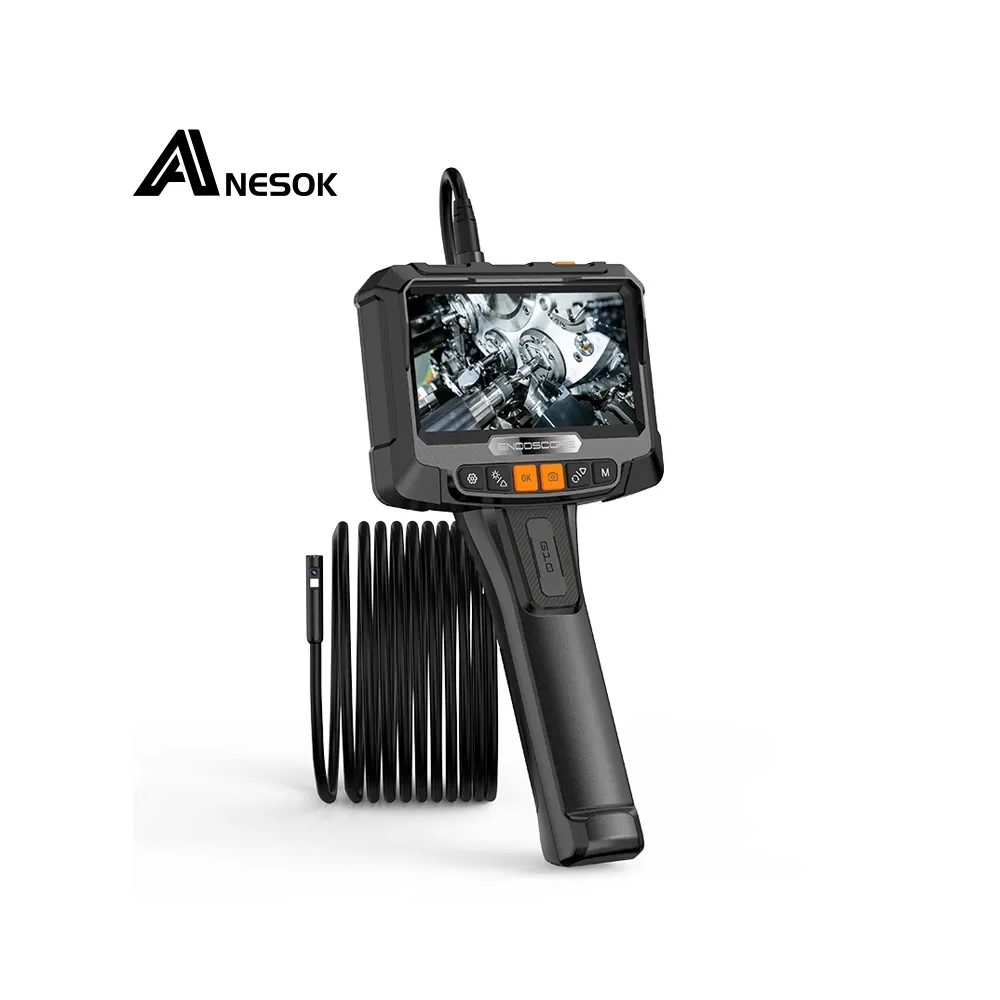

This Anesok®5 inch IPS HD Camera Video Endoscope have 3.9mm, 5.5mm and 8mm camera probe, which make it easily access a wide variety of confined place.It is widely used for inspection of industrial machinery, automobile repair, pipeline fixing, household air-conditioning appliance inspection, wall structure inspection, sewer line inspection and other inaccessible places.Video endoscope with 5"screen, more convenient and easy to operate and observe. IP67 waterproof and 6pcs adjustable LEDs to ensure a clear image even under dark condition. Airhead design probe can be replaced, with more stable quality. One touch to turn on, easy to operate. With soft silicone material, comfortable to press.The camera focal range is 2-10cm. Semi-rigid cable can be bent and hold its shape to access a wide variety of narrow places and meet with different using needs.
Accessories list
(Notice:3.9mm don’t have magnet, hook, mirror and protective cap)
(Notice:Dual lens and triple lens don’t have side mirror)
Endoscope*1
Manual*1
Accessorycylinder*1
Magnet*1
Hook*1
Mirror*1
Protective cap*1
USB andTYPE-C charging cable*1
Anesok® 5 inch IPS HD Camera Video Endoscope Specification
| Item name | 5 inch IPS HD Camera Video Endoscope |
| Model name | G10 |
| Sensor | CMOS, 1.0MP |
| Camera lighting | 6 LEDs,6+1 LEDs |
| Lens type | Single lens/Dual Lens |
| Probe diameter | 8mm/5.5mm |
| Cable type | Semi Rigid Cable |
| Cable length | 5m/10m/15m/20m/OEM cable length |
| Screen size | 5 Inch IPS Screen |
| Screen resolution | 1280*720P |
| Image resolution and format | 1920*1080(JPEG) |
| Video resolution and format | 1280*720P(AVI) |
| Frame rate | 20 fps |
| Working voltage | 4.2V |
| White balance | Automatic |
| Exposure | Automatic |
| Depth of field | Front camera:2-10cm |
| Side camera:2-5cm | |
| Field of vision | 70-78° |
| Bending radius | min. 30 mm |
| Camera waterproof | IP67 |
| Product material | ABS+PC |
| Operating temperature | -10 to +50 °C |
| Operating humidity | <85 % RH |
| Storage temperature | -10 to +50 °C |
| Storage humidity | <85 % RH |
| Data storage | TF card (size: max. 64 GB,speed class: min. 10) |
| Battery capacity | 18650 2000mAh Li-battery/3hours |
| Connector type | Type-C |
| Color | Black |
| Certification | EMC/RoHS/MSDS/UN38.3 |
| Zoom | 1.0-1.5-2.0X |
| Warranty | 1 Year |
| Package box size | 31.5*29*11cm |
| Pcs / Master CTN/CTN size | 10pcs/CTN; 59.5*59*33cm |
Anesok® 5 inch IPS HD Camera Video Endoscope Feature and Application
Feature:
(1)Dual lens
(2)5inch IPS scren
(3)IP67 waterproof
(4)6 Adjustable LEDs on the camera head
(5)Support 64GB memory card
(6)Type-C fast data transfer
(7)Picture zoom and still
(8)Video playback fast forward and backward
Anesok® 5 inch IPS HD Camera Video Endoscope Details
