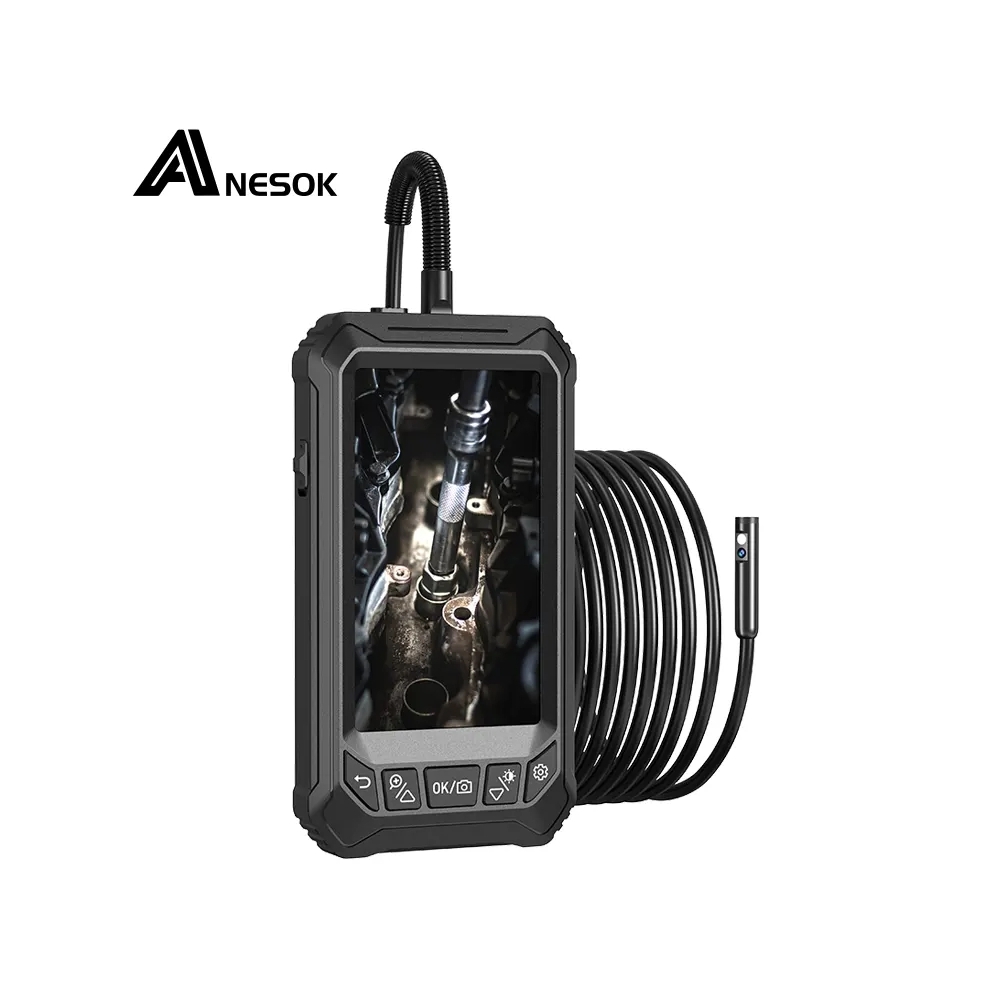

This Anesok® 5 inch IPS Video Endoscope is a great tool for auto maintenance, home inspection, electrical installs, HVAC fixes and household DIY. Two complete cameras are built into the end of the flexible probe. One button toggles between the front-view camera and the side-view camera at any time in a narrow area to get a different field of view. No extra mirror is needed.This is the biggest video endoscope screen at 5 inches with a color IPS screen and 1280x720 HD resolution image. IPS technology makes this screen extra bright for outdoor use.
Accessories list
(Notice:3.9mm don’t have magnet, hook, mirror and protective cap)
(Notice:Dual lens and triple lens don’t have side mirror)
Endoscope*1
Manual*1
Accessorycylinder*1
Magnet*1
Hook*1
Mirror*1
Protective cap*1
Micro USB and USB charging cable*1

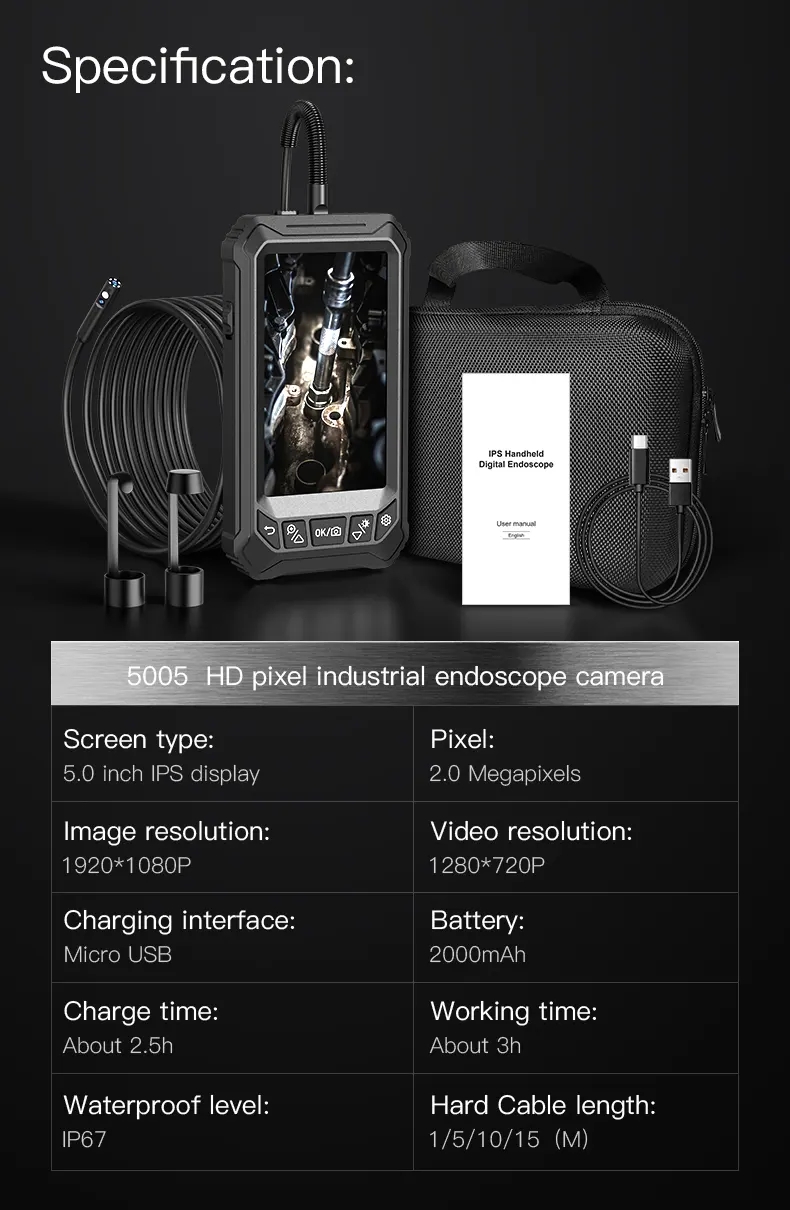

Anesok® 5 inch IPS Video Endoscope Specification
| Item name | 5 inch IPS Video Endoscope |
| Model name | 5005-B |
| Sensor | CMOS, 1.0MP |
| Camera lighting | 6 LEDs,6+1 LEDs |
| Lens type | Single lens/Dual Lens |
| Probe diameter | 3.9/5.5/8mm |
| Cable type | Semi Rigid Cable |
| Cable length | 1m/3m/5m/10m/15m/OEM cable length |

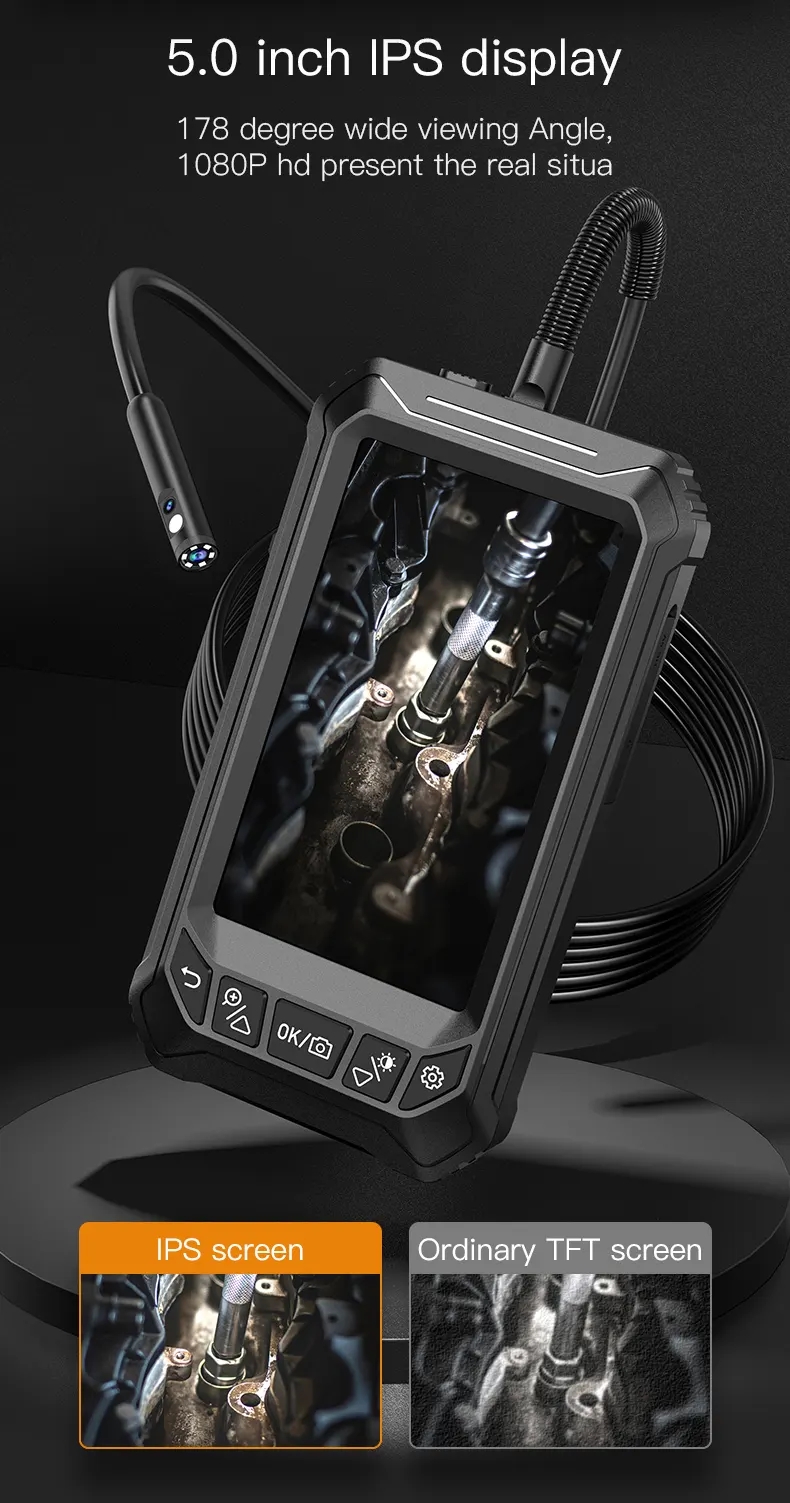

| Screen size | 5 Inch IPS Screen |
| Screen resolution | 960*480P |
| Image resolution and format | 1920*1080(JPEG) |
| Video resolution and format | 1280*720P(AVI) |
| Frame rate | 20 fps |
| Working voltage | 4.2V |
| White balance | Automatic |
| Exposure | Automatic |
| Depth of field | Front camera:2-10cm |
| Side camera:2-5cm | |
| Field of vision | 70° |
| Bending radius | min. 30 mm |
| Camera waterproof | IP67 |
| Product material | ABS+PC |
| Operating temperature | -10 to +50 °C |
| Operating humidity | <85 % RH |
| Storage temperature | -10 to +50 °C |
| Storage humidity | <85 % RH |
| Data storage | TF card (size: max. 32 GB,speed class: min. 10) |
| Battery capacity | 18650 2000mAh Li-battery/3hours |
| Connector type | Micro-USB |
| Color | Black |
| Certification | EMC/RoHS/MSDS/UN38.3 |
| Warranty | 1 Year |
| Package box size | 18*14*6.5cm |
| Pcs / Master CTN/CTN size | 27pcs/CTN; 56.5*42*24.5cm |

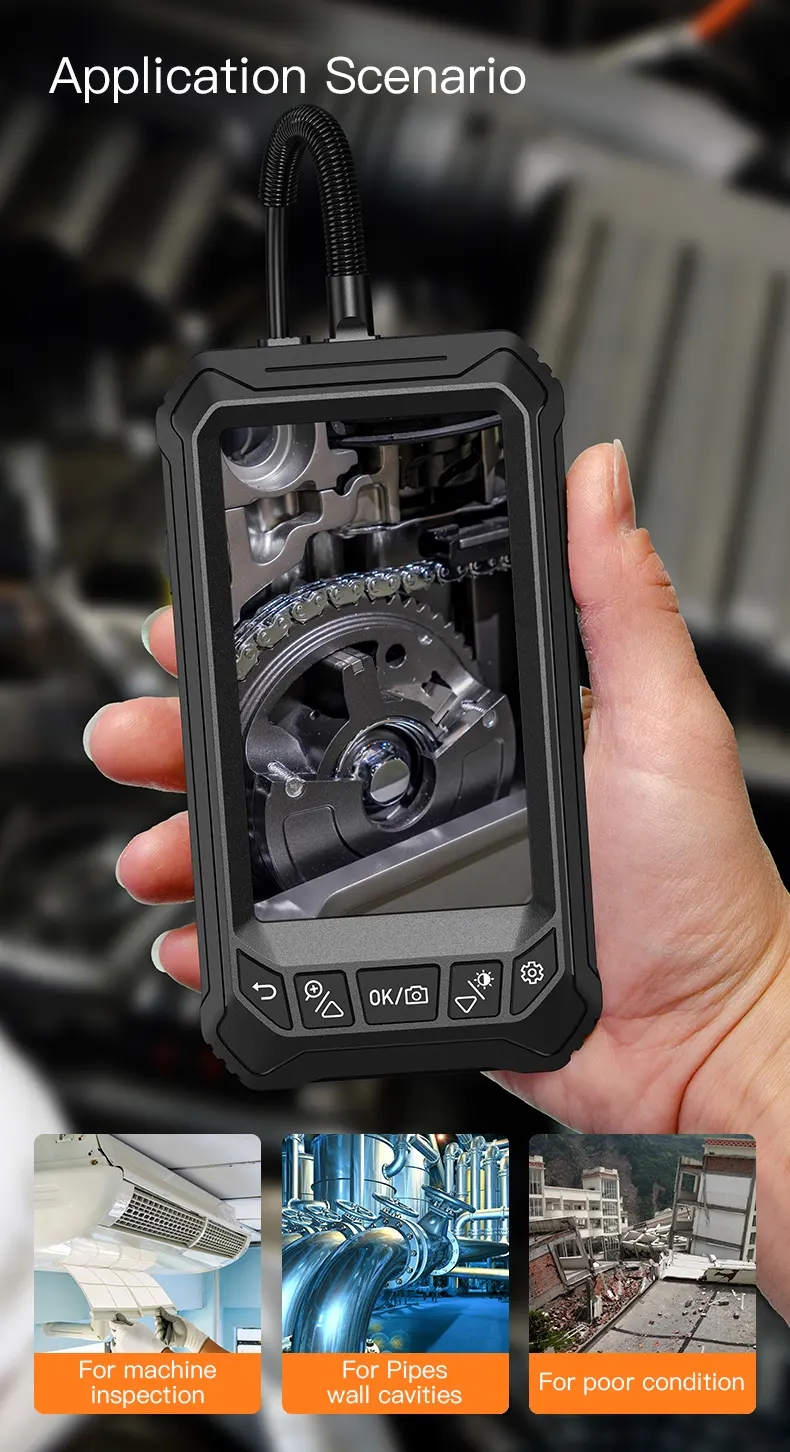

Anesok® 5 inch IPS Waterproof Video Endoscope Feature and Application
Feature:
(1)Dual lens/Single lens
(2)5inch IPS scren
(3)IP67 waterproof
(4)>=6 Adjustable LEDs on the camera head
(5)Support 32GB memory card
Anesok® 5 inch IPS Video Endoscope Details
