This Anesok® 5 inch IPS Articulating Video Endoscope has two-way 360°steering lens,two sides easy to free flexible bending 360°, 0° to 360°continuously adjustable and can be locked at any angle, which allow to put small probes into a small space, then transmit clear and all-round video and pictures shown on the monitor screen through the cable.The probe is IP67 waterproof and oil-proof. The articulating video endoscope inspection camera probe designed with unique temperature protection technology, even in harsh environment to cope with.When the temperature is above 80degrees, it automatically shuts down and acts as a protection.
Accessories list
Endoscope*1
Manual*1
Protective cap*1
USB and TYPE-C charging cable*1

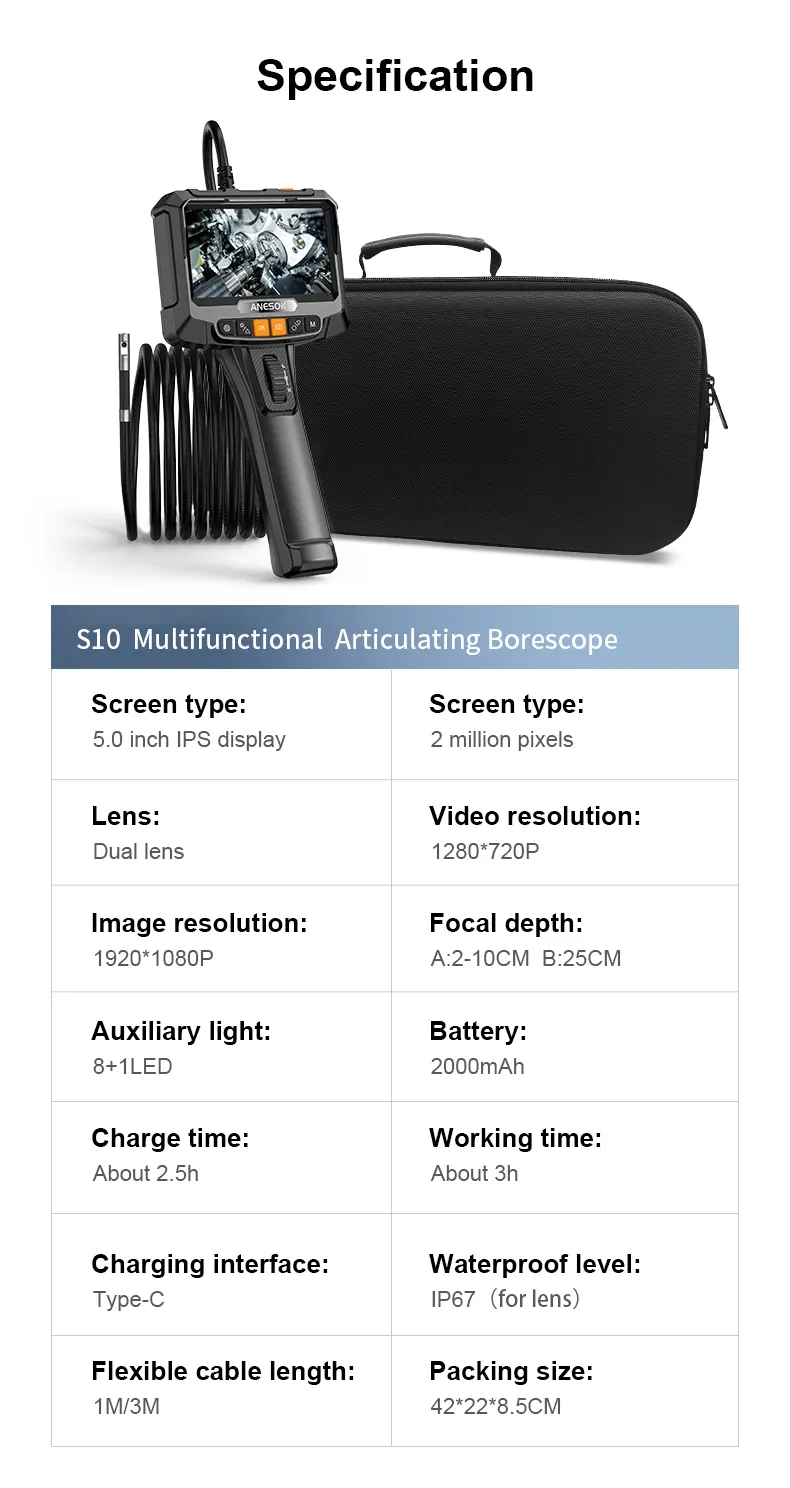

Anesok® 5 inch IPS Articulating Video Endoscope Specification
| Item name | 5 inch IPS Articulating Video Endoscope |
| Model name | S10 |
| Sensor | CMOS, 1.0MP |
| Camera lighting | 4 LEDs |
| Lens type | Single lens/Dual Lens |
| Probe diameter | 6.2mm/8.5mm |
| Cable type | Semi rigid cable/Flexible tube/ Soft cable |
| Cable length | 1m/2m |
| Screen size | 5 Inch IPS Screen |
| Screen resolution | 854*480P |
| Image resolution and format | 1920*1080(JPEG) |
| Video resolution and format | 1280*720P(AVI) |
| Frame rate | 20 fps |
| Working voltage | 4.2V |
| White balance | Automatic |
| Exposure | Automatic |
| Depth of field | Front camera:2-10cm |
| Side camera:2-5cm | |
| Field of vision | 70-80° |
| Camera waterproof | IP67 |
| Product material | ABS+PC |
| Operating temperature | -10 to +70 °C |
| Operating humidity | <85 % RH |
| Storage temperature | -10 to +70 °C |
| Storage humidity | <85 % RH |
| Data storage | TF card (size: max. 64 GB,speed class: min. 10) |
| Battery capacity | 18650 2000mAh Li-battery/3hours |
| Connector type | Type-C |
| Color | Black |
| Certification | EMC/RoHS/MSDS/UN38.3 |
| Zoom | 1.0-1.5-2.0X |
| Warranty | 1 Year |
| Package box size | 42*30.5*9.5cm |
| Pcs / Master CTN/CTN size | 10pcs/CTN; 49*44.5*43cm |
Anesok® 5 inch IPS Articulating Video Endoscope Feature and Application
Feature:
(1)Dual lens/Single lens
(2)5inch IPS scren
(3)IP67 waterproof and oil-proof
(4)4 Adjustable LEDs on the camera head
(5)Support 64GB memory card
(6)Type-C fast data transfer

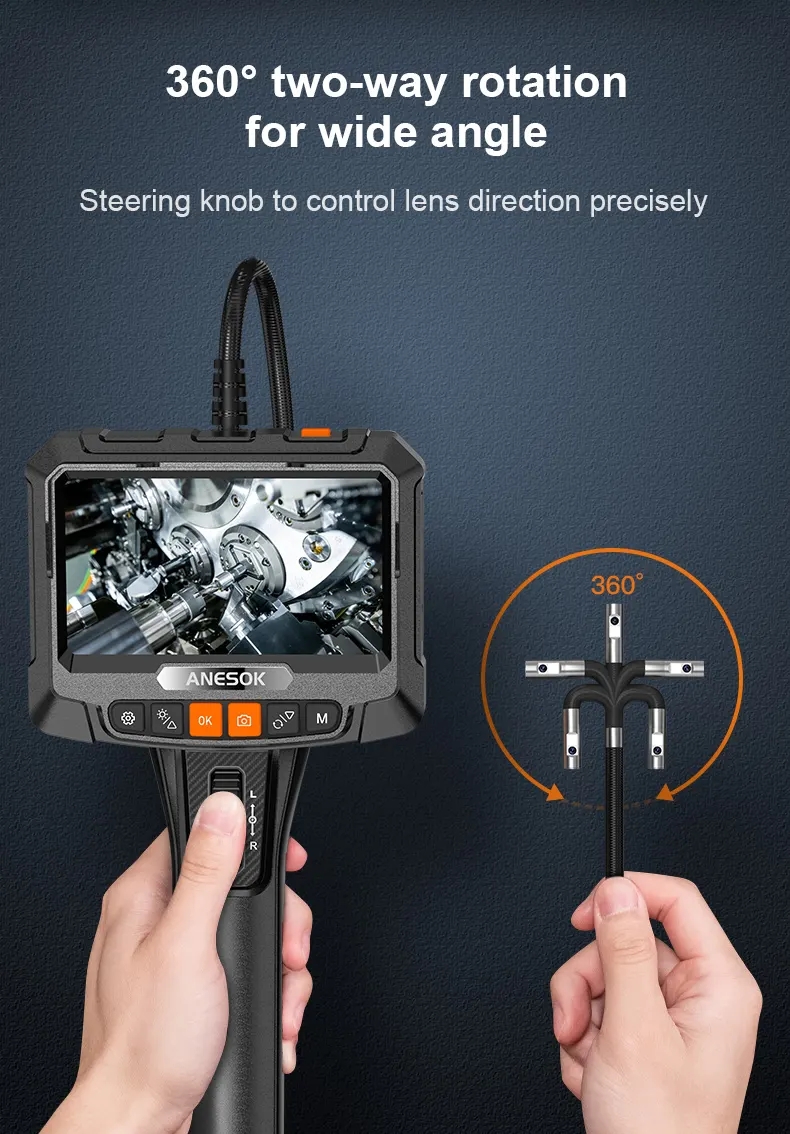

(7)Two-way 360°Steering Lens
(8)High Temperature Protection
Anesok® 5 inch IPS Articulating Video Endoscope Details
